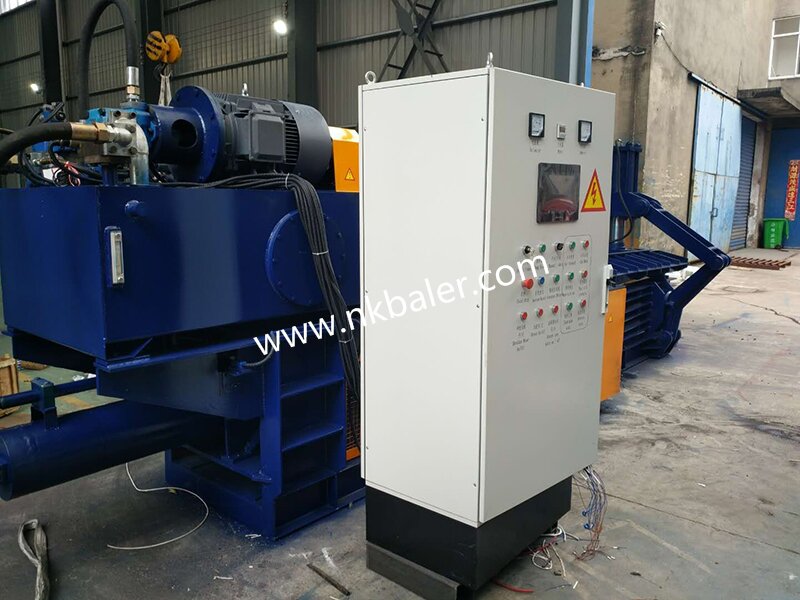

Horizontal Waste Paper Hydraulic Compactor
The Horizontal Baler Machine, also known as waste paper compactor, is always used for the disposal of cardboard, ideal for waste recycling facilities, cardboard manufacturing plants, department stores, grocery stores, drug stores, supermarkets, printing facilities and others which generate large amount of waste cardboard.
Cardboard baler can be used for cartons, paper, plastic film, old corrugated cardboard (OCC), old newspaper (ONP), old magazines (OMG) and other packaging materials. It is also useful in baling other waste materials, such as office waste and polystyrene packaging for easy storage until disposal.The waste paper baler can be applied to all light foaming and loose materials such as waste paper, waste paper boxes, waste cardboard, bark, waste plastic bags, etc. The package is compact, neat and beautiful, which can greatly reduce transportation costs and reduce storage space.
|
Item |
Name |
parameter |
|
mainframe parameter |
Bale size | 750mm（W）×850mm（H）×～1400mm(L) |
| Material type | Scrap Kraft paper, Carton, Cardboard ,Soft Film | |
| Material density | 300～400Kg/m3 | |
| Feed opening size | 1200mm×750mm | |
| Main motor power | 22KW+11KW | |
| Main cylinder | YG180/125-2600 | |
| Shrink Cylinder | YG180/125 | |
| Shrink way | Three side shrink month | |
| Main cylinder force | 60T | |
| Max. system working force | 21MPa | |
| Output capacity | About1-3tons /Hour | |
| Mainframe weight(T) | About 10 tons | |
| Tie wire line | 4 line φ2.75～φ3.0mm3 iron wire | |
| Pressure time | ≤25S/ (go and back) | |
| Machine size | 6.7M*3.6M*2.3M | |
| Chain conveyor | Size | 1200㎜（W）*12000㎜（L） |
| Motor power | 5.5KW | |
| Control way | Automatic / manual |
